DIAG4 BIKE Serial Diagnostic System Software
$1,478.95
Want extra peace of mind? Even if a seller doesn't offer returns,
MX Locker gives you the option to make any item returnable with Return Assurance at checkout.
Want extra peace of mind? Even if a seller doesn't offer returns,
MX Locker gives you the option to make any item returnable with Return Assurance at checkout.
MX Locker is 100% committed to ensuring that every sale ends in satisfaction—for both buyer and seller. Your payment is held until the item is delivered and approved. If it's not as described, you'll receive a full refund.
Every transaction is backed by our secure payment system. We hold funds until you confirm the item arrived in the promised condition—so you can shop worry-free.
MX Locker is 100% committed to ensuring that every sale ends in satisfaction—for both buyer and seller. Your payment is held until the item is delivered and approved. If it's not as described, you'll receive a full refund.
Every transaction is backed by our secure payment system. We hold funds until you confirm the item arrived in the promised condition—so you can shop worry-free.
Overview
Specs:
Select a variation to see more accurate specs.| Class: | Tools |
| Division: | Shop, Tools & Trailers |
| Product Type: | Tools |
| Segment: | V-Twin |
| Sub Class: | Diagnostic Scan Tools |
Description

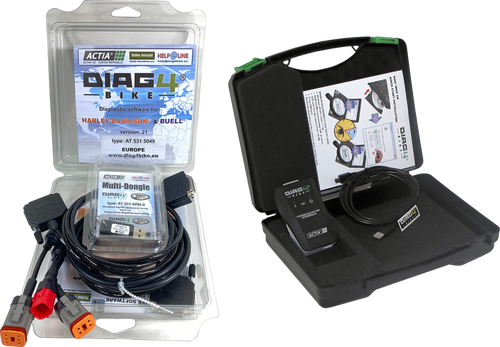

Professional diagnostic tool for Harley Davidson & Buell workshops and tuning centers. Diagnoses electronic fuel injection module (EFI) and others (Security modules, ABS, etc.) through the diagnostic connector. The system consists of a communication interface with Harley-Davidson adapter, USB cable for connection to your Laptop (PC) and software compatible with Windows XP, Vista, 7, 8 and 10. A wireless Bluetooth version of the interface is also available. An adapter for CAN-BUS models is included. The system performs the following functions and more. Software for Indian and Victory is also available.
Features:
- Ignition Module
- EFI (Electronic Fuel Injection Module) - All models
- TSSM (Turn Signal Security Module)..............Key FOB with button
- HFSM (Hands Free Security Module).............Key FOB without button
- BCM (Body Control Module).............Key FOB without button
- Gauges (Speedo, Tach and Instrument Module) - All models
- ABS Module (Delphi + CAN models) - All models
- Radio and Audio all models
- Thunder MAX EFI
- Read and Clear Diagnostic Trouble Codes......................All models
- Read Identification data (part numbers, VIN number)......All models
- Monitoring real-time data (throttle position, temperature, oxygen sensors, turn signals etc.)
- Test actuators (injectors, coils, main relay, fuel pump, idle, turn signals, tachometer, lamps etc.)
- Buell diagnostics are incorporated in Harley-Davidson diagnostics
- Unit of measure selection metric/standard
- Communication interface is CAN ready (models with 6-pin connector)
- Module replacement –TSM, TSSM, HFSM, BCM,
- ABS Service (Bleeding and configuration, Delphi + CAN models) - All models
- ACR (Automatic compression release during starting)
- Cruise Control, Exhaust actuator, EITMS......enable/disable
- Side Stand Switch Configuration - All Models
- Intake Solenoid Valve Configuration on CAN Models
- Radio customization-region code and speaker configuration, radio pairing
- J&M Audio Configuration
- ABS Telltale Configuration on CAN Models
- Idle speed adjustment 800 - 1200 rpm (models with Delphi Electronic Fuel Injection Module)
- TSSM Customization......PIN read/change, Auto arming disable/enable etc.
- HFSM Customization......Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change, Side car and Service Mode (disable/enable)
- BCM Customization........Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change, Lights configuration, keyless ignition
- Disarming (HFSM/BCM module)........PIN read/FOB assignment on armed bike (for BCM modules a CAN disarming cable is needed)
- Buell TPS adjustment
- Dataloging
- ABS Module (embedded/not embedded)
- Speedo module pairing
- Wheel size adjustment (Speedo calibration)
- Odometer unit setting
